C-PVC Hot and Cold Water System

Supreme Lifeline C-PVC is a high-quality piping system made using advanced Japanese technology and top-grade raw materials. Designed for hot and cold water supply, it is ideal for residential, commercial, and industrial use, offering a durable alternative to GI piping. Available in sizes from 15mm to 50mm, the system meets IS and ASTM standards. It features corrosion resistance, leak-proof joints, high strength, low thermal expansion, and fire resistance. Lightweight and easy to install, it ensures safe water delivery with minimal maintenance. Approved by NSF, Supreme Lifeline is a reliable, cost-effective, and long-lasting solution for modern plumbing needs.

FITTINGS

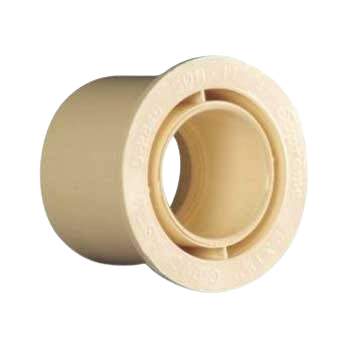

Reducing Bush

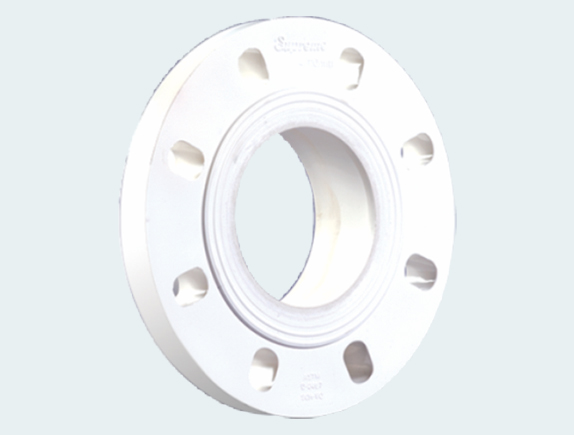

Flange Adapter

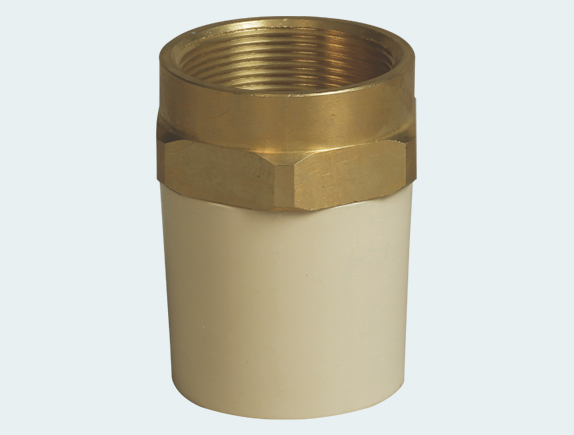

FTA (Brass)

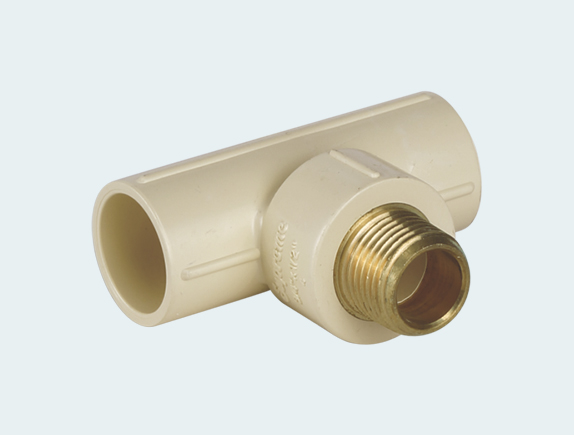

Male Threaded Tee

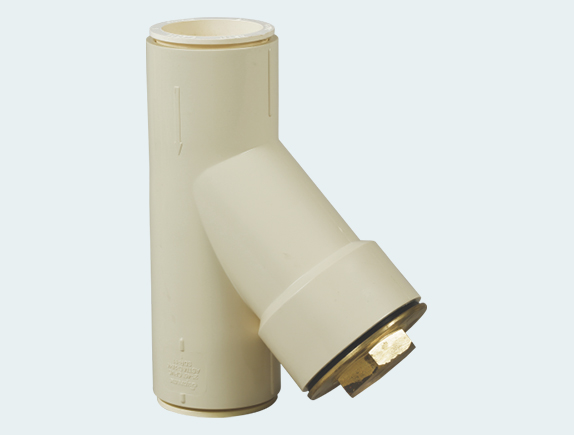

Y-Strainer

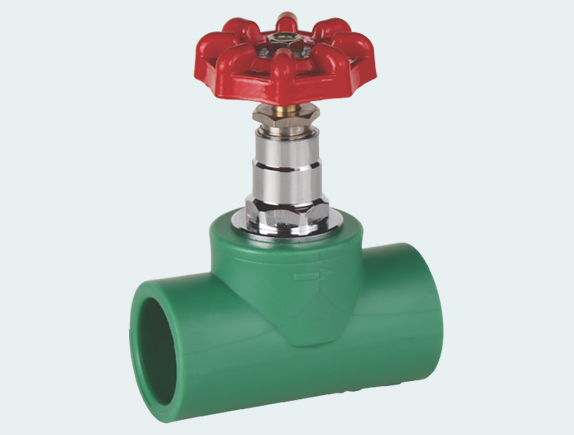

Screw Tap with Handwheel

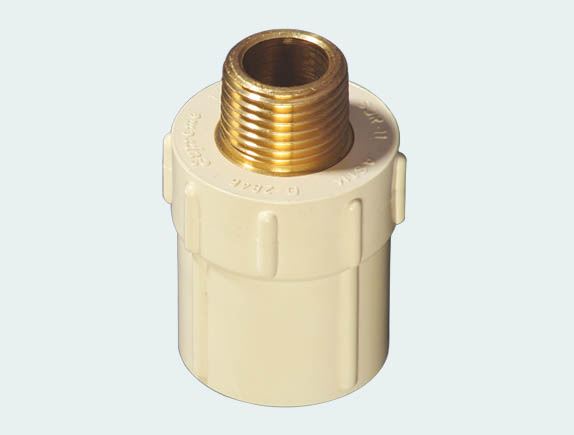

RMTA ( Brass)

Supreme Lifeline C-PVC Pipe Specifications

Nominal Size Inch Outer Diameter ‘D’ (mm) SDR-9 (Company Standard) SDR-11 SDR-13.5
Min Max Wall Thickness Min Wall Thickness Max WP @ 23°C WP @ 82°C Wall Thickness Min Wall Thickness Max WP @ 27°C WP @ 82°C Wall Thickness Min Wall Thickness Max WP @ 27°C WP @ 82°C
15 ½ 15.80 16.00 - - - - 1.70 2.20 28.14 6.93 1.40 1.90 22.23 5.60
20 ¾ 22.10 22.30 2.50 3.00 35.20 8.80 2.00 2.50 28.14 6.93 1.70 2.20 22.23 5.60
25 1 28.50 28.70 3.20 3.80 34.20 8.80 2.60 3.10 28.14 6.93 2.10 2.60 22.23 5.60
32 1¼ 34.80 35.00 - - - - 3.20 3.70 28.14 6.93 2.60 3.10 22.23 5.60
40 1½ 41.20 41.40 - - - - 3.80 4.30 28.14 6.93 3.10 3.60 22.23 5.60
50 2 53.90 54.10 - - - - 4.90 5.50 28.14 6.93 4.00 4.60 22.23 5.60
