PP-R Hot and Cold water system
PP-R pipes and fittings offer a superior plumbing solution with benefits like low head loss, thermal conductivity, and sound transmission. Made from European-certified PP-R type-3 raw material, they resist scaling, corrosion, and chemical attacks, ensuring over 50 years of durability. These pipes are lightweight, easy to install, and ideal for both hot and cold potable water systems. They feature watertight fusion joints and comply with IS:15801 and ISO:15874 standards. Available in 20–160mm sizes and high pressure classes (up to PN25), they are UV-resistant and cost-effective, making them ideal for plumbing in diverse environments, including seismic zones.
FITTINGS

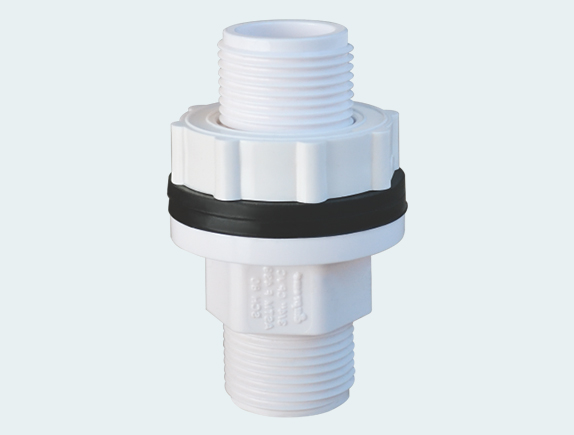

Tank Connector

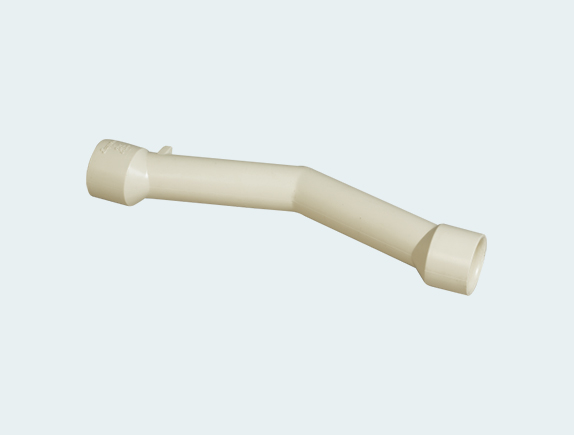

Bypass Bend

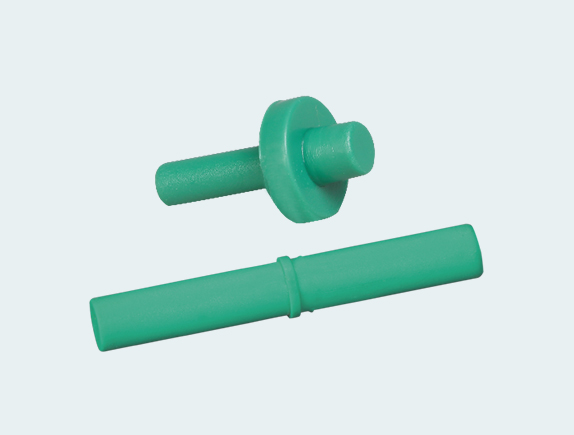

Hole repairing plug
.jpg)

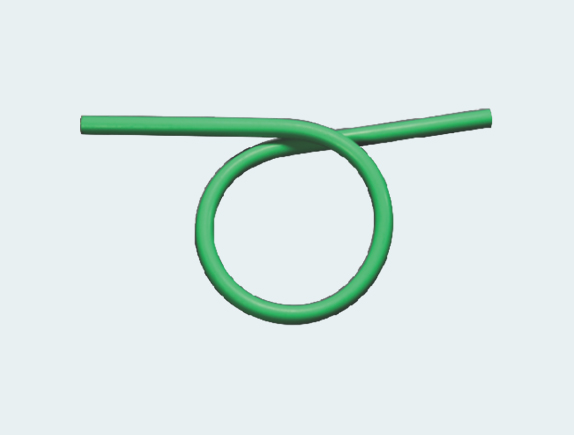

Expansion Loop (F)
PP-R Pipe Specifications
| Nominal Size (mm) | Outside Diameter 'D' (mm) | SDR-11 (PN 10) Wall Thickness 't' (mm) | SDR-7.4 (PN 16) Wall Thickness 't' (mm) | SDR-6 (PN 20) Wall Thickness 't' (mm) | ||||
|---|---|---|---|---|---|---|---|---|
| Min | Max | Min | Max | Min | Max | Min | Max | |
| 20 | 20.0 | 20.3 | 1.90 | 2.30 | 2.80 | 3.30 | 3.40 | 4.00 |
| 25 | 25.0 | 25.3 | 2.30 | 2.80 | 3.50 | 4.10 | 4.20 | 4.90 |
| 32 | 32.0 | 32.3 | 2.90 | 3.40 | 4.40 | 5.10 | 5.40 | 6.20 |
| 40 | 40.0 | 40.4 | 3.70 | 4.30 | 5.50 | 6.30 | 6.70 | 7.60 |
| 50 | 50.0 | 50.5 | 4.60 | 5.30 | 6.90 | 7.80 | 8.30 | 9.40 |
| 63 | 63.0 | 63.6 | 5.80 | 6.60 | 8.60 | 9.70 | 10.50 | 11.80 |
| 75 | 75.0 | 75.7 | 6.80 | 7.70 | 10.30 | 11.60 | 12.50 | 14.00 |
| 90 | 90.0 | 90.9 | 8.20 | 9.30 | 12.30 | 13.80 | 15.00 | 16.70 |
| 110 | 110.0 | 110.9 | 10.00 | 11.20 | 15.10 | 16.90 | 18.30 | 20.60 |
| 160 | 160.0 | 161.5 | 14.60 | 16.30 | 21.90 | 24.30 | 26.60 | 29.50 |
