Polyethylene Piping System
Polyethylene pipes are safe, durable, and cost-effective solutions for various applications such as potable water supply, irrigation, and bore wells. These HDPE pipes are made from virgin raw materials using advanced manufacturing technology. Strict testing of raw materials and finished products ensures compliance with national and international quality standards. Available in sizes from 20mm to 800mm and pressure ratings from PN 2.5 to PN 16, they come in PE 63, 80, and 100 grades. The pipes are manufactured in accordance with IS:4984 and ISO:4427 standards and are WRc-NSF, UK certified for potable water use.
Product Range

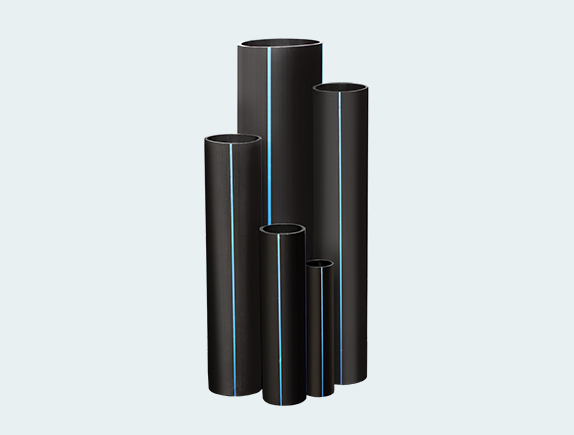

Pipe

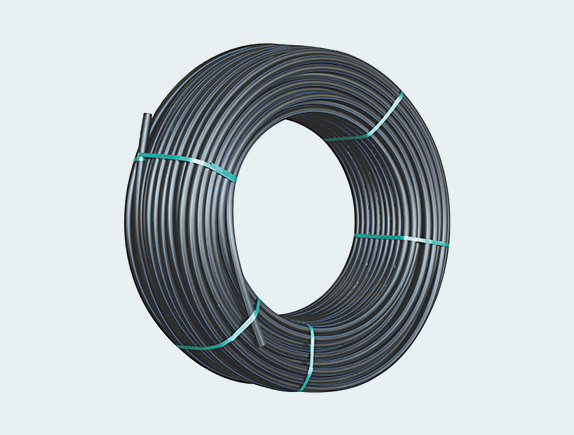

Coil

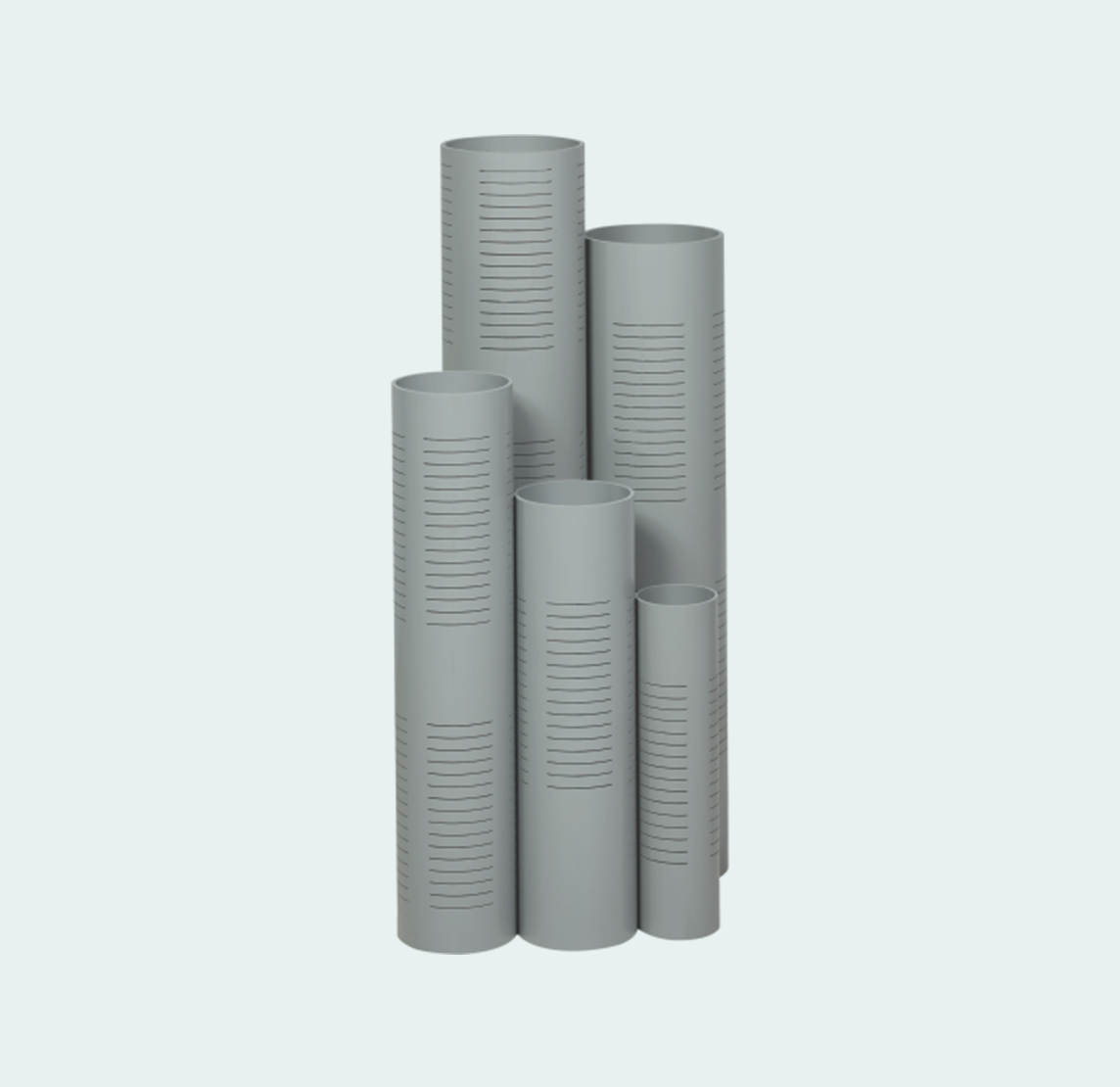

Screen Pipes
Standard dimension ratio (SDR) and corresponding wall thicknesses of pipes
| Nominal OD | SDR 41 PE 100 PN 3.2 |
SDR 33 PE 80 PN 2.5 |
SDR 26 PE 63 PN 3.2 |
SDR 21 PE 63 PN 4 |
SDR 17 PE 80 PN 5 |
SDR 13.6 PE 80 PN 6 |
SDR 11 PE 80 PN 8 |
SDR 9 PE 100 PN 12.5 |
SDR 7.4 PE 100 PN 16 |
SDR 6 PE 100 PN 20 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | |
| 16 | - | - | - | - | - | - | - | - | - | - | 2.0 | 2.3 | 2.3 | 2.7 | 2.6 | 3.1 | 2.7 | 3.1 | ||
| 20 | - | - | - | - | - | - | - | - | 2.0 | 2.3 | 2.3 | 2.7 | 2.8 | 3.4 | 3.0 | 3.4 | 3.4 | 3.9 | ||
| 25 | - | - | - | - | - | - | - | - | 2.3 | 2.7 | 2.8 | 3.3 | 3.2 | 4.0 | 4.2 | 4.8 | - | - | ||
| 32 | - | - | - | - | - | - | 2.0 | 2.3 | 2.4 | 2.8 | 3.0 | 3.4 | 3.6 | 4.2 | 4.4 | 5.0 | 5.4 | 6.1 | ||
| 40 | - | - | - | - | 2.0 | 2.3 | 2.4 | 2.8 | 3.0 | 3.4 | 3.7 | 4.2 | 4.5 | 5.1 | 5.6 | 6.2 | 6.7 | 7.5 | ||
| 50 | 2.0 | 2.3 | 2.4 | 2.8 | 2.8 | 3.4 | 3.2 | 3.8 | 4.0 | 4.6 | 4.6 | 5.3 | 5.6 | 6.4 | 6.8 | 7.6 | 8.4 | 9.4 | ||
| 63 | 2.5 | 2.9 | 2.9 | 3.4 | 3.0 | 3.6 | 3.8 | 4.4 | 4.5 | 5.1 | 5.8 | 6.6 | 6.8 | 7.6 | 8.6 | 9.6 | 10.5 | 11.7 | ||
| 75 | 2.0 | 2.3 | 2.3 | 2.7 | 2.9 | 3.3 | 3.6 | 4.1 | 4.1 | 4.7 | 5.6 | 6.4 | 6.9 | 7.7 | 8.4 | 9.2 | 10.5 | 11.7 | ||
| 90 | 2.2 | 2.6 | 2.8 | 3.3 | 3.0 | 3.6 | 4.3 | 4.9 | 5.4 | 6.2 | 6.9 | 7.7 | 8.2 | 9.2 | 10.4 | 11.5 | 12.6 | 13.9 | ||
| 110 | 2.7 | 3.1 | 3.4 | 3.9 | 4.3 | 4.9 | 5.3 | 6.0 | 6.7 | 7.6 | 8.1 | 9.0 | 10.0 | 11.1 | 12.3 | 13.7 | 15.0 | 16.6 | ||
| 110 | 2.7 | 3.1 | 3.4 | 3.9 | 4.3 | 4.9 | 5.3 | 6.0 | 6.5 | 7.3 | 8.1 | 9.1 | 10.0 | 11.1 | 12.3 | 13.7 | 14.9 | 16.5 | 18.4 | 20.3 |
| 125 | 3.1 | 3.6 | 3.8 | 4.3 | 4.9 | 5.5 | 6.0 | 6.7 | 7.4 | 8.3 | 9.2 | 10.3 | 11.4 | 12.7 | 13.9 | 15.4 | 16.9 | 18.7 | 20.9 | 23.1 |
| 140 | 3.5 | 4.0 | 4.3 | 4.9 | 5.4 | 6.1 | 6.7 | 7.5 | 8.3 | 9.3 | 10.3 | 11.5 | 12.8 | 14.2 | 15.6 | 17.3 | 19.0 | 21.0 | 23.4 | 25.9 |
| 160 | 4.0 | 4.5 | 4.9 | 5.5 | 6.2 | 7.0 | 7.8 | 8.6 | 9.5 | 10.6 | 11.8 | 13.1 | 14.6 | 16.2 | 17.8 | 19.7 | 21.7 | 24.0 | 26.7 | 29.5 |
| 180 | 4.4 | 5.0 | 5.5 | 6.2 | 7.0 | 7.8 | 8.6 | 9.6 | 10.7 | 11.8 | 13.1 | 14.8 | 16.4 | 18.2 | 20.2 | 22.3 | 24.4 | 27.0 | 30.0 | 33.1 |
| 200 | 4.9 | 5.5 | 6.1 | 6.9 | 7.7 | 8.6 | 9.6 | 10.7 | 11.8 | 13.1 | 14.8 | 16.4 | 18.2 | 20.2 | 22.3 | 24.7 | 27.1 | 30.0 | 33.4 | 36.9 |
| 225 | 5.5 | 6.2 | 6.9 | 7.7 | 8.7 | 9.7 | 10.8 | 12.0 | 13.3 | 14.8 | 16.6 | 18.4 | 20.5 | 22.7 | 25.0 | 27.6 | 30.5 | 33.7 | 37.5 | 41.4 |
| 250 | 6.1 | 6.9 | 7.6 | 8.5 | 9.7 | 10.8 | 12.0 | 13.3 | 14.8 | 16.4 | 18.4 | 20.4 | 22.8 | 25.2 | 27.8 | 30.7 | 33.8 | 37.3 | 41.7 | 46.0 |
| 280 | 6.9 | 7.7 | 8.5 | 9.5 | 10.8 | 12.0 | 13.4 | 14.9 | 16.5 | 18.3 | 20.6 | 22.8 | 25.5 | 28.2 | 31.2 | 34.5 | 37.9 | 41.8 | 46.7 | 51.5 |
| 315 | 7.7 | 8.6 | 9.6 | 10.7 | 12.2 | 13.6 | 15.0 | 16.6 | 18.6 | 20.6 | 23.2 | 25.7 | 28.7 | 31.7 | 35.0 | 38.6 | 42.6 | 47.0 | 52.5 | 57.9 |
| 355 | 8.7 | 9.7 | 10.8 | 12.0 | 13.7 | 15.2 | 17.0 | 18.8 | 20.9 | 23.1 | 26.2 | 29.0 | 32.3 | 35.7 | 39.5 | 43.6 | 48.0 | 52.9 | 59.2 | 65.3 |
| 400 | 9.8 | 10.9 | 12.2 | 13.6 | 15.4 | 17.1 | 19.1 | 21.2 | 23.6 | 26.1 | 29.5 | 32.9 | 36.4 | 40.2 | 44.5 | 49.1 | 54.1 | 59.7 | 66.7 | 73.5 |
| 450 | 11.0 | 12.2 | 13.7 | 15.2 | 17.4 | 19.3 | 21.5 | 23.8 | 26.5 | 29.3 | 33.1 | 36.6 | 41.0 | 45.2 | 50.0 | 55.1 | 60.9 | 67.1 | 75.0 | 82.6 |
| 500 | 12.2 | 13.6 | 15.2 | 17.4 | 19.3 | 21.4 | 23.9 | 26.4 | 29.5 | 32.6 | 36.8 | 40.6 | 45.5 | 50.2 | 55.6 | 61.3 | 67.6 | 74.5 | 83.4 | 91.9 |
| 560 | 13.7 | 15.2 | 17.0 | 18.8 | 21.6 | 23.9 | 26.7 | 29.5 | 33.0 | 36.4 | 41.2 | 45.5 | 51.0 | 56.2 | 62.3 | 68.7 | 75.7 | 83.4 | 93.4 | 102.9 |
| 630 | 15.4 | 17.1 | 19.1 | 21.2 | 24.3 | 26.9 | 30.0 | 33.1 | 37.1 | 41.0 | 46.4 | 51.2 | 57.3 | 63.2 | 70.0 | 77.1 | 85.2 | 93.9 | 105.0 | 115.6 |
| 710 | 17.4 | 19.3 | 21.6 | 23.9 | 27.3 | 30.3 | 33.9 | 37.4 | 41.8 | 46.1 | 52.3 | 57.7 | 64.6 | 71.2 | 78.9 | 86.9 | 96.0 | 105.7 | 118.4 | 130.4 |
| 800 | 19.6 | 21.7 | 24.3 | 26.9 | 30.8 | 34.0 | 38.1 | 42.1 | 47.1 | 52.0 | 58.9 | 64.9 | 72.8 | 80.2 | 88.9 | 97.7 | 108.2 | 119.2 | - | - |
