uPVC High Pressure Plumbing System
Supreme’s Aqua Gold high-pressure uPVC plumbing system is a lead-free, durable, and economical solution for potable water and various industrial applications. Manufactured from high-grade PVC as per ASTM standards, it offers superior chemical resistance, high tensile strength, and excellent impact durability. The system includes a full range of SCH 40 and SCH 80 pipes and fittings, available in multiple sizes. Lightweight and easy to install, it ensures leak-proof joints with solvent welding and requires minimal maintenance. Ideal for residential, commercial, and industrial use, Aqua Gold pipes deliver long-lasting performance, corrosion resistance, and high flow rates, making them a reliable choice.
FITTINGS

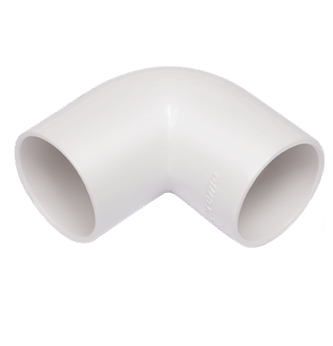

Elbow 90°

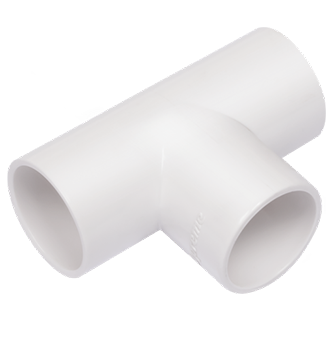

Conduit Round Tee Fitting

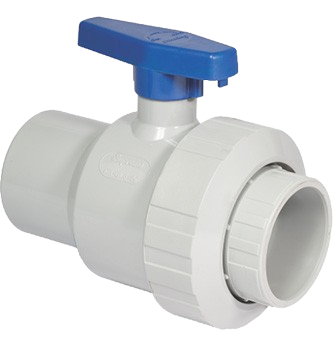

Ball Valve

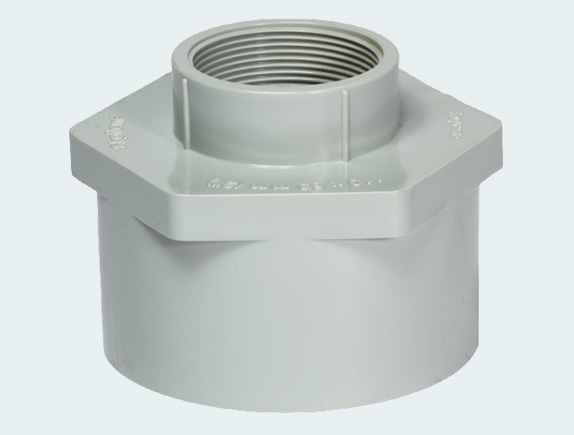

Reducing Female Adapter
Coupler

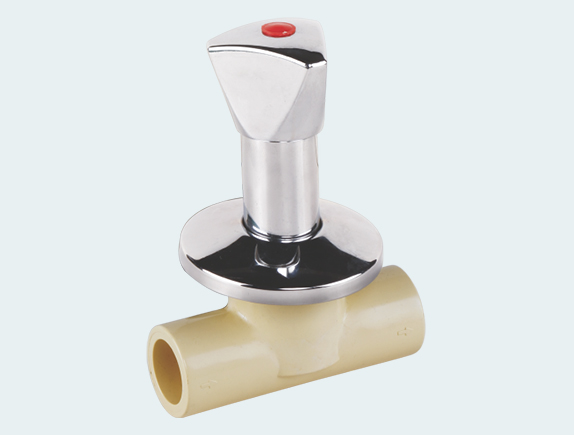

Concealed Valve
Blind Flange

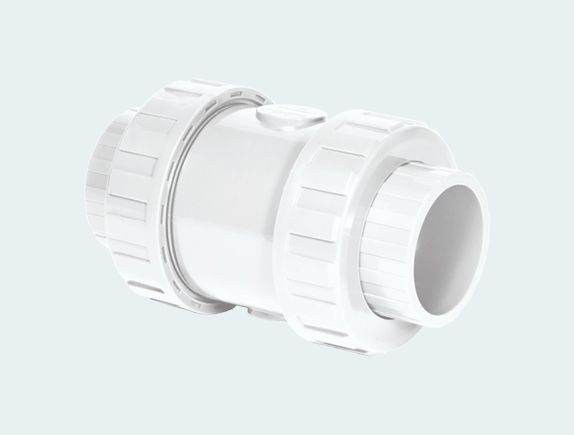

Non Return Valve

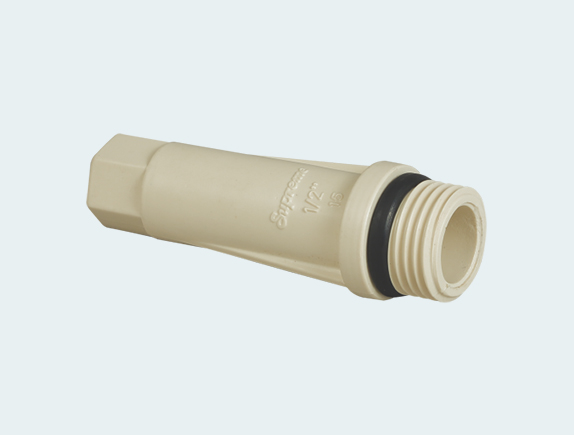

Circuit Testing Plug
uPVC Pipe Specifications (Schedule 40 & 80)
| Nominal size | inch | Outside diameter 'D' (mm) | Schedule 40 | Schedule 80 | ||
|---|---|---|---|---|---|---|
| Wall thickness (mm) | Working pressure (kgf/cm² / psi) |
Wall thickness (mm) | Working pressure (kgf/cm² / psi) |
|||
| 15 | ½ | 21.34 ± 0.10 | 2.77±0.51 | 42.18 / 600 | 3.73±0.51 | 59.76 / 850 |
| 20 | ¾ | 26.67 ± 0.10 | 2.87±0.51 | 33.74 / 480 | 3.91±0.51 | 48.51 / 690 |
| 25 | 1 | 33.40 ± 0.13 | 3.38±0.51 | 31.64 / 450 | 4.55±0.53 | 44.29 / 630 |
| 32 | 1¼ | 42.16 ± 0.13 | 3.56±0.51 | 26.00 / 370 | 4.85±0.58 | 36.56 / 520 |
| 40 | 1½ | 48.26 ± 0.15 | 3.68±0.51 | 23.20 / 330 | 5.08±0.61 | 33.00 / 470 |
| 50 | 2 | 60.32 ± 0.15 | 3.91±0.51 | 19.69 / 280 | 5.54±0.66 | 28.12 / 400 |
| 65 | 2½ | 73.02 ± 0.18 | 5.16±0.61 | 21.09 / 300 | 7.01±0.84 | 29.53 / 420 |
| 80 | 3 | 88.90 ± 0.20 | 5.49±0.66 | 18.28 / 260 | 7.62±0.91 | 26.01 / 370 |
| 100 | 4 | 114.30 ± 0.21 | 6.02±0.71 | 15.56 / 220 | 8.56±1.02 | 22.50 / 320 |
| 125 | 5 | 141.30 ± 0.25 | 6.55±0.79 | 13.36 / 190 | 9.52±1.14 | 20.39 / 290 |
| 150 | 6 | 168.28 ± 0.28 | 7.11±0.86 | 12.65 / 180 | 10.97±1.32 | 19.69 / 280 |
| 200 | 8 | 219.08 ± 0.38 | 8.18±0.99 | 11.25 / 160 | 12.70±1.52 | 17.58 / 250 |
| *250 | 10 | 273.05 ± 0.38 | 9.27±1.12 | 09.84 / 140 | 15.06±1.80 | 16.17 / 230 |
