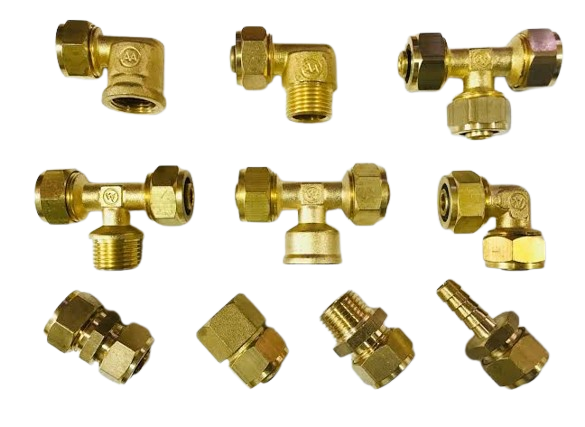

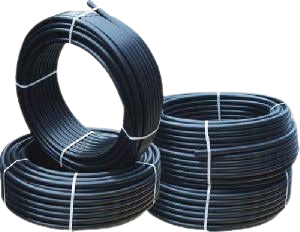

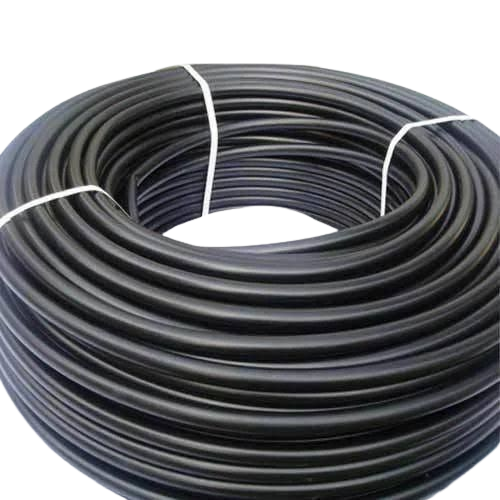

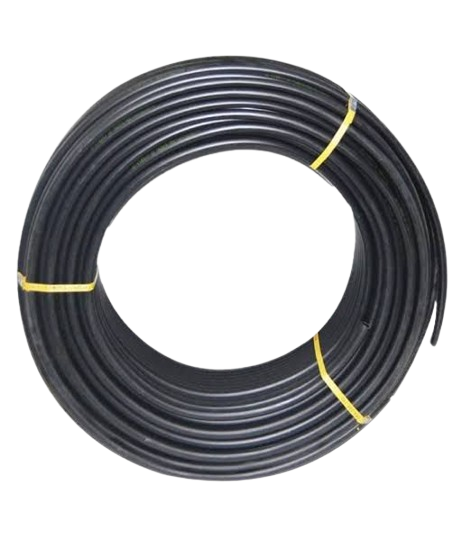

Composite Pipes and Fittings are advanced piping solutions made by combining materials like aluminum and polyethylene or fiberglass and resin. These multilayer structures offer the strength of metal with the corrosion resistance and flexibility of plastic. Commonly used in plumbing, gas distribution, HVAC, and industrial systems, composite pipes are lightweight, easy to install, and have a long service life. They resist scale formation, chemical damage, and temperature fluctuations, making them ideal for both hot and cold water applications. Fittings are designed for secure, leak-proof connections, enhancing system reliability. Their durability and versatility make them a preferred choice in modern piping systems.
Sr. No. | Pipe Size (Inch) | Pipe Size (MM) | Wall Thickness (MM) | Working Pressure (Bar) | Temperature Range (°C) | Common Applications |
---|---|---|---|---|---|---|
1 | ½” | 16 | 2.0 | 10 | -40 to 95 | Plumbing |
2 | ¾” | 20 | 2.0 | 10 | -40 to 95 | Cold & Hot Water |
3 | 1” | 25 | 2.5 | 10 | -40 to 95 | Gas, HVAC |
4 | 1¼” | 32 | 3.0 | 10 | -40 to 95 | Industrial Fluids |
5 | 1½” | 40 | 3.5 | 8 | -40 to 95 | Compressed Air |
6 | 2” | 50 | 4.0 | 8 | -40 to 95 | Water Supply |
7 | 2½” | 63 | 4.5 | 6 | -40 to 95 | Firefighting Systems |
8 | 3” | 75 | 5.0 | 6 | -40 to 95 | HVAC |
9 | 4” | 110 | 6.0 | 6 | -40 to 95 | Drainage |
10 | 6” | 160 | 8.0 | 4 | -40 to 95 | Industrial Systems |
